90 Degree Full Back Plate Glass to Wall Hinge
90 Degree Full Back Plate Hinge
Rectangular Corners And Edges
Size: 90 x 55 mm
Rectangular Corners And Edges
Size: 90 x 55 mm
модель :
1100B-11

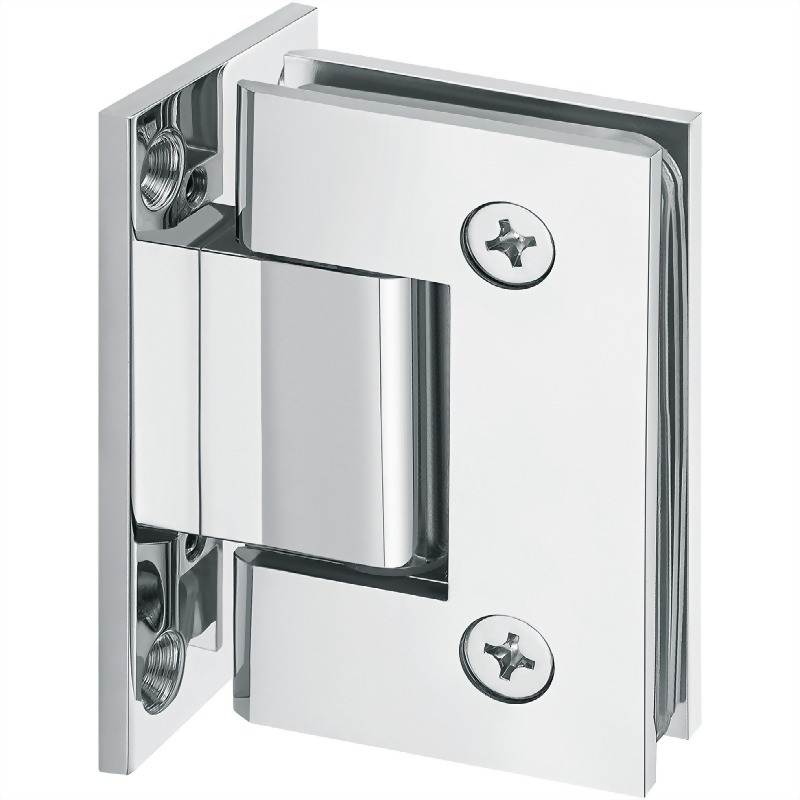

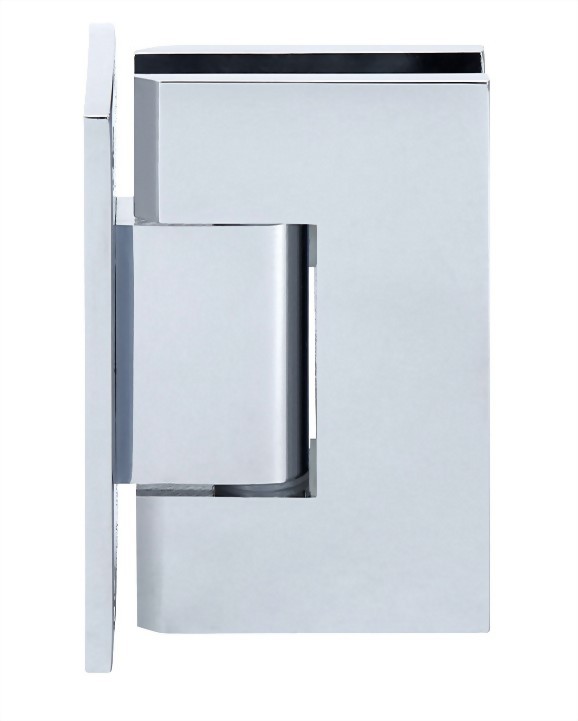

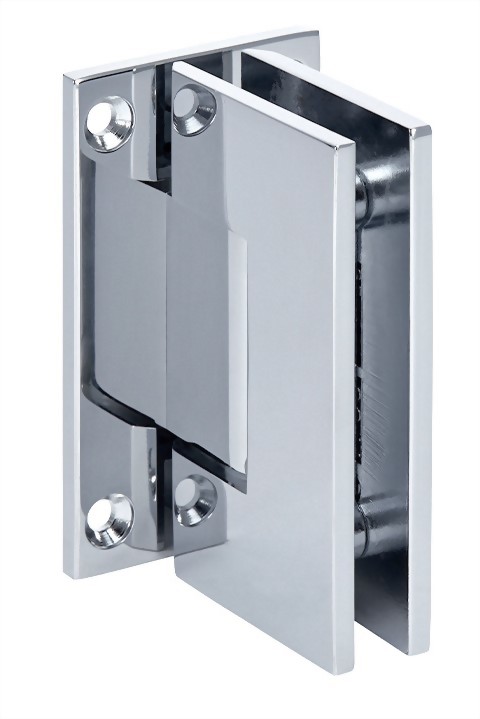

ARMSTRONG'S 1100B-11 is a 90 degree full back plate glass to wall hinge.
The 1100B-01 has rectangular corners edges for a sleek appearance. The 1100B Series Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 30 degree of the closed position. 1100B Series Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure.
|
ORDER NO. |
FINISH |
|
C1100B-11 |
CHROME |
|
SN1100B-11 |
SATIN NICKEL |
|
MBK1100B-11 |
MATTE BLACK |
Using 2 hinges: Door Weight: 37 kgs, Door Width: 80cm
Using 3 hinges: Door Weight: 55 kgs, Door Width: 90cm
Packing:20 pcs/carton; G.W.:12.8 KG
- Rectangular corners and edges
- Designed For 5/16"-1/2" (8 mm to 12 mm) Tempered Glass
- Self-Centering within 30 Degrees of Closing Position
- Commonly used in Residential Bath and Commercial Hotel Applications
- Many Popular Finishes to Select From
- Material: Brass
-
MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS
Approx. 5 lb./ft²1/2" (12 mm) GLASS
Approx. 6.4 lb./ft²DOOR WEIGHT DOOR WIDTH Using 2 Hinges 80 LBS (37 kg) 31.5" (800 mm) Using 3 Hinges 120 LBS. (55 kg) 36" (914 mm)
- Solid brass
- Over 50,000 times open-close cycles
- Available in many different colors
- Commonly used in Residential Bath and Commercial Hotel Applications
